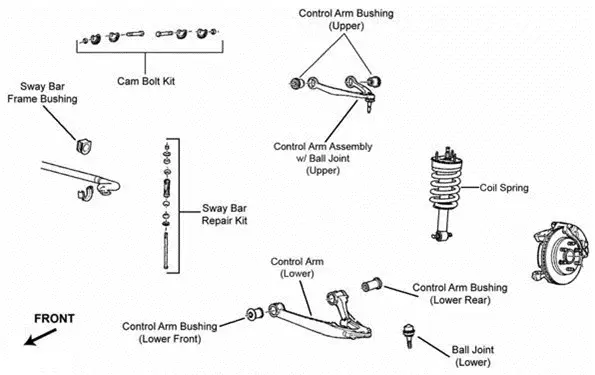

Figure F243
| Year | Model/Application | Part | P/C Qty | Figure | |
| Silverado 1500 | |||||
| Control Arm with Ball Joint | |||||
| 2016-2014 (Cont.) | Two Wheel Drive (4×2), Cast Iron Arm, (Will Not Fit Aluminum Steering Knuckles, Contains Bushings, New Pre-Installed Integral Dust Boot Eases Installation, New And Original Designs Can Be Installed) Right Lower Two Wheel Drive (4×2), Cast Iron Arm, (Will Not Fit Aluminum Steering Knuckles, Contains Bushings, R-Series) Right Lower | CK620955 | 1 | F243 | |
| RK620889 | 1 | F243 | |||
| 2015-2014 | Cast Iron Arm, (Will Not Fit Aluminum Steering Knuckles, Contains Bushing, Powdered Metal Gusher Brg. For Better Lubrication) Left Upper | CK80669 | 1 | F243 | |
| Cast Iron Arm, (Will Not Fit Aluminum Steering Knuckles, R-Series) Left Upper | RK80669 | 1 | F243 | ||
| Cast Iron Arm, (Will Not Fit Aluminum Steering Knuckles, Contains Bushing, Powdered Metal Gusher | |||||
| Brg. For Better Lubrication) Right Upper | CK80670 | 1 | F243 | ||
| Cast Iron Arm, (Will Not Fit Aluminum Steering Knuckles, R-Series) Right Upper | RK80670 | 1 | F243 | ||
| Four Wheel Drive (4X4), Except Off Road Package, Cast Iron Arm, (Will Not Fit Aluminum Steering | |||||
| Knuckles, Contains Bushings, New Pre-Installed Integral Dust Boot Eases Installation, New And | |||||
| Original Designs Can Be Installed) Right Lower | CK620955 | 1 | F243 | ||
| Four Wheel Drive (4X4), Except Off Road Package, Cast Iron Arm, (Will Not Fit Aluminum Steering | |||||
| Knuckles, Contains Bushings, R-Series) Right Lower | RK620889 | 1 | F243 | ||
| 2013-2009 | Cast Iron Arm, (Will Not Fit Aluminum Steering Knuckles, Contains Bushings, New Pre-Installed Integral Dust Boot Eases Installation, New And Original Designs Can Be Installed) Left Lower | CK620956 | 1 | F243 | |
| Cast Iron Arm, (Will Not Fit Aluminum Steering Knuckles, Contains Bushings, R-Series) Left Lower | RK620888 | 1 | F243 | ||
| Cast Iron Arm, (Will Not Fit Aluminum Steering Knuckles, Contains Bushings, New Pre-Installed Integral | |||||
| Dust Boot Eases Installation, New And Original Designs Can Be Installed) Right Lower | CK620955 | 1 | F243 | ||
| Cast Iron Arm, (Will Not Fit Aluminum Steering Knuckles, Contains Bushings, R-Series) Right Lower | RK620889 | 1 | F243 | ||
| 2013-2007 | (Contains Bushing, Powdered Metal Gusher Brg. For Better Lubrication) Left Upper (R-Series) Left Upper (Contains Bushing, Powdered Metal Gusher Brg. For Better Lubrication) Right Upper (R-Series) Right Upper Plus Or Minus 3 Degrees Camber; Plus Or Minus 1.5 Degrees Caster, (Adjustable, R-Series) Left Upper Plus Or Minus 3 Degrees Camber; Plus Or Minus 1.5 Degrees Caster, (Adjustable, R-Series) Right Upper | CK80669 | 1 | F243 | |
| RK80669 | 1 | F243 | |||
| CK80670 | 1 | F243 | |||
| RK80670 | 1 | F243 | |||
| RK100214 | 1 | F243 | |||
| RK100215 | 1 | F243 | |||
| 2008-2007 | (Contains Bushings, New Pre-Installed Integral Dust Boot Eases Installation, New And Original Designs Can Be Installed) Left Lower | CK620956 | 1 | F243 | |
| (Contains Bushings, R-Series) Left Lower | RK620888 | 1 | F243 | ||
| (Contains Bushings, New Pre-Installed Integral Dust Boot Eases Installation, New And Original Designs | |||||
| Can Be Installed) Right Lower | CK620955 | 1 | F243 | ||
| (Contains Bushings, R-Series) Right Lower | RK620889 | 1 | F243 | ||
| Strut and Spring Assembly | |||||
| 2013-2010 | Except Electronic Suspension, (Strut, Spring & Top Mount) | ST8583 | 2 | F243 | |
| 2009-2007 | Four Wheel Drive (4X4), Except Electronic Suspension, (Strut, Spring & Top Mount) | ST8583 | 2 | F243 | |
| Strut Bumper Bellows | |||||
| 2013-2007 | K150275 | 2 | F243 | ||
| Strut Mount | |||||
| 2013-2007 | Except Auto Leveling System, (Bearing Not Included, Contains Spring Seat, Design Allows Ease Of Installation) | K160098 | 2 | F243 | |
| Strut Spring Seat | |||||
| 2017-2014 | Except Magnetic Ride Control Suspension | Upper | K160310 | 2 | F243 |
| 2013-2007 | Lower | K160311 | 2 | F243 | |
| Except Auto Leveling System | Upper | K160310 | 2 | F243 | |
| Sway Bar Bushing | |||||
| 2018-2007 | 34mm Sway Bar Diameter, (Improved Design Bushing With Premium Rubber Material And Synthetic Fabric Lining Lasts Longer And Eliminates Noise) To Frame | K201612 | 1 | F243 | |
| 34mm Sway Bar Diameter, (Standard Design) To Frame | K200221 | 1 | F243 | ||
| 36mm Sway Bar Diameter, (Standard Design) To Frame | K200222 | 1 | F243 | ||
| 2017-2007 | 30mm Sway Bar Diameter, (Improved Design Bushing With Premium Rubber Material And Synthetic Fabric Lining Lasts Longer And Eliminates Noise) To Frame | K201611 | 1 | F243 | |
| Sway Bar Repair Kit | |||||
| 2016-2007 | 7-1/4² Length, (Includes Polyurethane Bushings And Solid Metal Sleeve For Enhanced Performance. Barrel Nut Allows For Easier Installation.) | K700538 | 2 | F243 | |
| Wheel Hub & Bearing Assembly | |||||
| 2018-2014 | Four Wheel Drive (4X4) | 515160 | 2 | ||
| 2016-2014 | Two Wheel Drive (4×2) | 515159 | 2 | ||
| 2013-2007 | Four Wheel Drive (4X4) | 515096 | 2 | ||
| Two Wheel Drive (4×2) | 515097 | 2 | |||
