Looking for a suspension diagram, kit, or repair guide to diagnose and fix your Ford Superduty suspension noise or other problem? Look no further! We’re also happy to help you figure out what parts you need, just post a comment below with the year make and model and the problem you are encountering and we can guide you with the suspension kit, upgrade, or part numbers you need. #HAPPYMOTORING

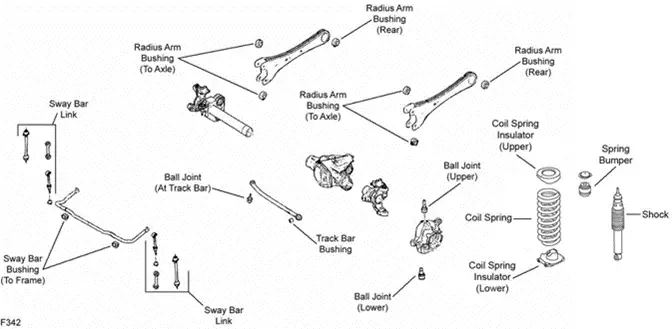

Diagram F342

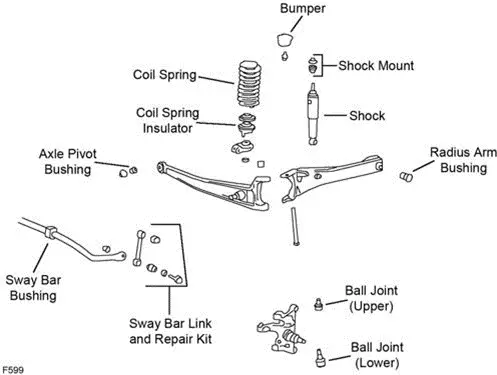

Diagram 599
| F250 Super Duty | ||||
| Ball Joint | ||||
| 2018-2005 | Four Wheel Drive (4X4), (Powdered Metal Gusher Brg. For Better Lubrication) Upper Four Wheel Drive (4X4), (Powdered Metal Gusher Brg. For Better Lubrication) Lower | K80026 K8607T | 2 2 | F342 F342 |
| 2016-2005 | Four Wheel Drive (4X4), (Design Allows Ease Of Installation) At Track Bar | K500262 | 1 | F342 |
| 2016-2003 | Two Wheel Drive (4×2), (Powdered Metal Gusher Brg. For Better Lubrication, New Pre-Installed Integral Dust Boot Eases Installation, New And Original Designs Can Be Installed) Upper Two Wheel Drive (4×2), (Powdered Metal Gusher Brg. For Better Lubrication) Lower | K80028 K80027 | 2 2 | F599 F599 |
| Radius Arm Bushing Kit | ||||
| 2014-2005 | Four Wheel Drive (4X4) Rear | K201635 | 2 | F342 |
| Sway Bar Bushing | ||||
| 2016-2011 | Four Wheel Drive (4X4), Except Wide Track Axle, (Design Allows Ease Of Installation) To Frame Four Wheel Drive (4X4), Wide Track Axle, (Design Allows Ease Of Installation) To Frame Two Wheel Drive (4×2), (Design Allows Ease Of Installation) To Frame | K200884 K200885 K200882 | 1 1 1 | F342 F342 F599 |
| 2010-2008 | Four Wheel Drive (4X4), (Design Allows Ease Of Installation) To Frame Two Wheel Drive (4×2), (Design Allows Ease Of Installation) To Frame | K200884 K200881 | 1 1 | F342 F599 |
| FRONT SUSPENSION (Cont.) | ||||
| Year | Model/Application | Part | P/C Qty | Figure |
| F250 Super Duty | ||||
| Sway Bar Bushing | ||||
| 2007-2005 | Four Wheel Drive (4X4), 21mm Sway Bar Diameter, (Design Allows Ease Of Installation) To Frame | K200880 | 1 | F342 |
| Sway Bar Link | ||||
| 2017-2011 | Four Wheel Drive (4X4), (Full Ball Stud Provides 360 Degrees Of Smooth Rotation) | K750362 | 2 | F342 |
| 2017-2003 | Two Wheel Drive (4×2), 6.85² Center To Center | K80043 | 2 | F599 |
| 2010 | Four Wheel Drive (4X4), From 2/12/10, (Full Ball Stud Provides 360 Degrees Of Smooth Rotation) Four Wheel Drive (4X4), Thru 2/11/10, (Full Ball Stud Provides 360 Degrees Of Smooth Rotation) | K750362 K700452 | 2 2 | F342 F342 |
| 2009-2008 | Four Wheel Drive (4X4), (Full Ball Stud Provides 360 Degrees Of Smooth Rotation) | K700452 | 2 | F342 |
| 2008 | Two Wheel Drive (4×2) | K80043 | 1 | F599 |
| 2007 | Four Wheel Drive (4X4), From 12/18/06, (Full Ball Stud Provides 360 Degrees Of Smooth Rotation) Four Wheel Drive (4X4), Thru 12/17/06, (Full Ball Stud Provides 360 Degrees Of Smooth Rotation) | K700452 K750138 | 2 2 | F342 F342 |
| Track Bar | ||||
| 2015-2005 | (Design Allows Ease Of Installation) | DS300045 | 1 | F342 |
| Track Bar Bushing | ||||
| 2015-2005 | (Design Allows Ease Of Installation) | K200640 | 1 | F342 |
| Wheel Hub & Bearing Assembly | ||||
| 2016 | Four Wheel Drive (4X4) | 515130 | 2 | |
| 2015-2011 | Four Wheel Drive (4X4), Single Rear Wheels | 515130 | 2 | |
| 2010-2005 | Four Wheel Drive (4X4), Single Rear Wheels | 515081 | 2 | |
| 2009-2005 | Four Wheel Drive (4X4), Dual Rear Wheels | 515082 | 2 | |
