Parts for Acura Legend (1990 & Prior)

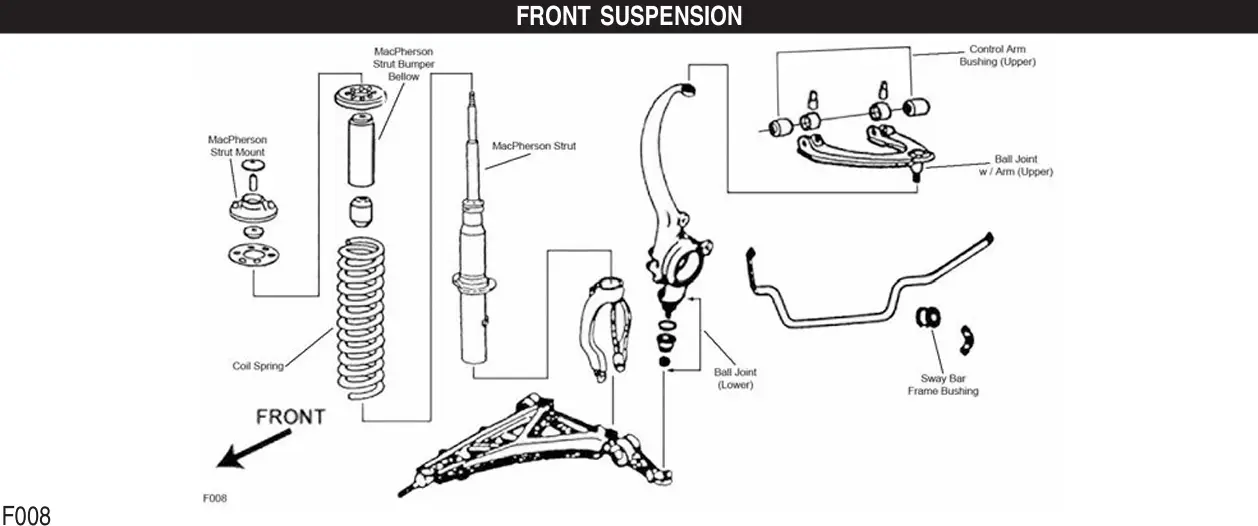

Front Suspension
Ball Joint
| Year | Model/Application | Part | Qty | Figure |
|---|---|---|---|---|
| 1990-1986 | Powdered Metal Gusher Brg. For Better Lubrication | K9441 ‡ | 2 | F008 |
Control Arm
| Year | Model/Application | Part | Qty | Figure | |
|---|---|---|---|---|---|
| 1988-1986 | 4 Dr. Sedan (R-Series) | Right Lower | RK642508 | 1 | F008 |
Control Arm with Ball Joint
| Year | Model/Application | Part | Qty | Figure | |
|---|---|---|---|---|---|
| 1990-1988 | (R-Series) | Left Upper | RK621630 | 1 | F008 |
| 1990-1988 | (R-Series) | Right Upper | RK621629 | 1 | F008 |
| 1987-1986 | (R-Series) | Left Upper | RK621632 | 1 | F008 |
| 1987-1986 | (R-Series) | Right Upper | RK621631 | 1 | F008 |
Additional Front Suspension Parts
- Strut Bumper Bellows: K90467 (1990-1986)
- Strut Mounting Kit (Upper): K9492 (1990-1986)
- Sway Bar Repair Kit: K90102 (1990-1986, 4 Dr. Sedan)

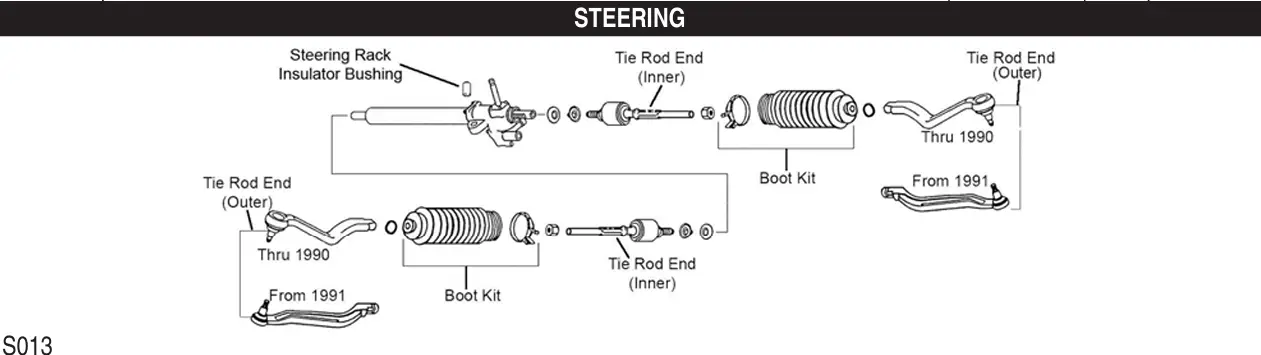

Steering
| Year | Part | Side | Part Number | Qty | Figure |
|---|---|---|---|---|---|
| 1990-1986 | Rack & Pinion Boot Kit | Left | K9306 | 1 | S013 |
| 1990-1986 | Rack & Pinion Boot Kit | Right | K9367 | 1 | S013 |
Tie Rod Ends
- 1990-1986 Left Outer: ES2812L
- 1990-1986 Right Outer: ES2811R
- 1990-1986 Inner: EV212 (2 required)
Rear Suspension
- Control Arm Bushing: K90033 (1990-1987, Lower – Contains Front And Rear Bushings)
- Strut Bumper Bellows: K90466 (1990-1986, Replacement Type – Contains Bumper)
- Strut Bushing (Lower): K9443 (1990-1989 / 1988-1987 Coupe Hardtop)
- Strut Mount: K90214 (1988-1986, 4 Dr. Sedan)
- Strut Mounting Kit (Upper): K9498 (1990-1989 / 1988-1987 Coupe Hardtop)
- Sway Bar Bushing (To End): K90193 (1990-1987)
